[Renzo Mischianti]

Hi tpapas,

I add the EMailSender to the sketch, I attach the code.

#include <SPI.h>
#include <Ethernet.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include "TimerOne.h"
#include <math.h>
#include "cactus_io_BME280_I2C.h"
#include <EMailSender.h>

#define TX_Pin 8 // used to indicate web data tx
// Data wire is plugged into digital pin 9 on the Arduino
#define ONE_WIRE_BUS 9
#define WindSensor_Pin (2) // digital pin for wind speed sensor
#define WindVane_Pin (A2) // analog pin for wind direction sensor
#define VaneOffset 0 // define the offset for caclulating wind direction

#define WEB_SERVER_PORT 8081
#define EMAIL_SEND_DEBOUNCE 5*60*1000

volatile unsigned int timerCount; // used to count ticks for 2.5sec timer count
volatile unsigned long rotations; // cup rotation counter for wind speed calcs
volatile unsigned long contactBounceTime; // timer to avoid contact bounce in wind speed sensor

volatile float windSpeed;
int vaneValue; // raw analog value from wind vane
int vaneDirection; // translated 0 - 360 wind direction
int calDirection; // calibrated direction after offset applied
int lastDirValue; // last recorded direction value

int deviceCount = 0; // how many DS18B20 we keep on the OneWire

float OutminTemp; // keep track of minimum recorded Outside temp
float OutmaxTemp; // keep track of maximum recorded Outside temp
float InminTemp; // keep track of minimum recorded Inside temp
float InmaxTemp; // keep track of maximum recorded Inside temp

// Setup a oneWire instance to communicate with any OneWire device
OneWire oneWire(ONE_WIRE_BUS);

// Pass oneWire reference to DallasTemperature library
DallasTemperature sensors(&oneWire);

BME280_I2C bme; // I2C using address 0x77

// Here we setup the web server. We are using a static ip address and a mac address
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

IPAddress ip(192, 168, 1, 177);
IPAddress myDns(192, 168, 1, 1);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);


EthernetServer server(WEB_SERVER_PORT); // create a server listing on 192.168.1.45 port 80

EMailSender emailSend("apikey", "SG.FINTOFINTOFINTO.FINTOFINTO", "sender.mischianti@gmail.com", "smtp.sendgrid.net", 25 );

void isr_rotation();
void sendEmail();

void setup() {
	  Serial.begin(9600);
	   while (!Serial) {
	    ; // wait for serial port to connect. Needed for native USB port only
	  }

// setup anemometer values
	lastDirValue = 0;
	rotations = 0;
// setup timer values
	timerCount = 0;

	{
		sensors.begin(); // Start up the library
// locate devices on the bus
// Serial.print("Locating devices...");
// Serial.print("Found ");
// deviceCount = sensors.getDeviceCount();
// Serial.print(deviceCount, DEC);
// Serial.println(" devices.");
// Serial.println("");
		sensors.requestTemperatures();
		InminTemp = sensors.getTempCByIndex(0);
		InmaxTemp = sensors.getTempCByIndex(0);
		OutminTemp = sensors.getTempCByIndex(1);
		OutmaxTemp = sensors.getTempCByIndex(1);
	}

// disable the SD card by switching pin 4 High
	pinMode(4, OUTPUT);
	digitalWrite(4, HIGH);

	pinMode(53, OUTPUT);
    pinMode(10, OUTPUT);
    digitalWrite(10, HIGH);

	Serial.println(F("Pin start!"));

// start the Ethernet connection and server
//	  Ethernet.begin(mac, ip, myDns, gateway, subnet);
	  if (Ethernet.begin(mac) == 0) {
	    Serial.println(F("Failed to configure Ethernet using DHCP"));
	    if (Ethernet.hardwareStatus() == EthernetNoHardware) {
	      Serial.println(F("Ethernet shield was not found.  Sorry, can't run without hardware. :("));
	    } else if (Ethernet.linkStatus() == LinkOFF) {
	      Serial.println(F("Ethernet cable is not connected."));
	    }
	    // no point in carrying on, so do nothing forevermore:
	    while (true) {
	      delay(1);
	    }

	  }

	Serial.println(F("Begin executed!"));
	server.begin();

	if (!bme.begin()) {
		Serial.println(F("Could not find BME280 sensor, check wiring!"));
		while (1);
	}

	pinMode(TX_Pin, OUTPUT);
//pinMode(RG11_Pin, INPUT);
	pinMode(WindSensor_Pin, INPUT);
	attachInterrupt(digitalPinToInterrupt(WindSensor_Pin), isr_rotation, FALLING);

// setup the timer for 0.5 second
	Timer1.initialize(500000);
	Timer1.attachInterrupt(isr_timer);

	sei(); // Enable Interrupts

	Serial.print(F("IP: "));
	Serial.println(Ethernet.localIP());

	Serial.print(F("Web Server: http://"));
	Serial.print(Ethernet.localIP());
	Serial.print(F(":"));
	Serial.print(WEB_SERVER_PORT);
}

bool emailSended = false;
unsigned long timeElapsed = millis();

void loop() {

// Send command to all the sensors for temperature conversion
	sensors.requestTemperatures();

	bme.readSensor();

// update min and max temp values for Outside and Inside Temperatures
	if (sensors.getTempCByIndex(1) < OutminTemp) {
		OutminTemp = sensors.getTempCByIndex(1);
	}
	if (sensors.getTempCByIndex(1) > OutmaxTemp) {
		OutmaxTemp = sensors.getTempCByIndex(1);
	}
	if (sensors.getTempCByIndex(0) < InminTemp) {
		InminTemp = sensors.getTempCByIndex(0);
	}
	if (sensors.getTempCByIndex(0) > InmaxTemp) {
		InmaxTemp = sensors.getTempCByIndex(0);
	}

	// Check if value > 30 and check if you already send this email
	if (sensors.getTempCByIndex(0) > 30 && emailSended == false){
		emailSended = true;
		// check if you had already send an email in the last 5 minutes
		if ((timeElapsed+EMAIL_SEND_DEBOUNCE)<millis()){
			timeElapsed = millis();
			sendEmail();
		}
	}else{
		// The value return ok and so if you are going over 30 again new notification was sended
		emailSended = false;
	}

// listen for incoming clients
	EthernetClient client = server.available();
	if (client) {
// an http request ends with a blank line
		boolean currentLineIsBlank = true;
		while (client.connected()) {
			if (client.available()) {
				char c = client.read();
				Serial.write(c);
// if you've gotten to the end of the line (received a newline
// character) and the line is blank, the http request has ended,
// so you can send a reply
				if (c == '\n' && currentLineIsBlank) {
// send a standard http response header
					digitalWrite(TX_Pin, HIGH);
					client.println("HTTP/1.1 200 OK");
					client.println("Content-Type: text/html");
					client.println("Connection: close"); // connection closed completion of response
					client.println("Refresh: 10"); // refresh the page automatically every 10 sec
					client.println();
					client.println("<!DOCTYPE HTML>");
					client.print("<HTML><HEAD><TITLE>RadioActive Weather Server</TITLE></HEAD>");
					client.println("<font color='red'><h2>RadioActive Weather Server</font></h2>");
					client.print("Agios Merkouris, Sifnos @ 36.987832, 24.719809<br><br>");
					client.println("<html><body>");
					digitalWrite(TX_Pin, HIGH); // Turn the TX LED on
					client.print("<span style=\"font-size: 26px\";>Outside Temperature now ");
					client.print(sensors.getTempCByIndex(1));
					client.println("C<br>");
					client.print("<br> Inside Temperature now ");
					client.print(sensors.getTempCByIndex(0));
					client.println("C<br>");
					client.print("<br> Wind Speed now ");
					client.print(windSpeed);
					client.println(" mph<br>");
					getWindDirection();
					client.print("<br> Direction now ");
					client.print(calDirection);

					client.print(direction(calDirection));
					client.println("<br>");
					client.print("<br> Humidity now ");
					client.print(bme.getHumidity());
					client.println("%<br>");
					client.print("<br> Pressure now ");
					client.print(bme.getPressure_MB());
					client.println("mb%<br>");
					client.print("<br> Outside Min Temperature was ");
					client.print(OutminTemp);
					client.println("C<br>");
					client.print("<br> Outside Max Temperature was ");
					client.print(OutmaxTemp);
					client.println("C<br>");
					client.print("<br> Inside Min Temperature was ");
					client.print(InminTemp);
					client.println("C<br>");
					client.print("<br> Inside Max Temperature was ");
					client.print(InmaxTemp);
					client.println("C");
					client.println("</body></html>");
					digitalWrite(TX_Pin, LOW); // Turn the TX LED off
					break;
				}
				if (c == '\n') {
// you're starting a new line
					currentLineIsBlank = true;
				} else if (c != '\r') {
// you've gotten a character on the current line
					currentLineIsBlank = false;
				}
			}
		}
	}

// give the web browser time to receive the data
	delay(1);
// close the connection:
	client.stop();
}

// Interrupt handler routine for timer interrupt
void isr_timer() {

	timerCount++;

	if (timerCount == 5) {
// convert to mp/h using the formula V=P(2.25/T)
// V = P(2.25/2.5) = P * 0.9
		windSpeed = rotations * 0.9;
		rotations = 0;
		timerCount = 0;
	}
}

// Interrupt handler routine to increment the rotation count for wind speed
void isr_rotation() {

	if ((millis() - contactBounceTime) > 15) { // debounce the switch contact
		rotations++;
		contactBounceTime = millis();
	}
}

// Get Wind Direction
void getWindDirection() {

	vaneValue = analogRead(WindVane_Pin);
	vaneDirection = map(vaneValue, 0, 1023, 0, 360);
	calDirection = vaneDirection + VaneOffset;

	if (calDirection > 360)
		calDirection = calDirection - 360;

	if (calDirection > 360)
		calDirection = calDirection - 360;
}

const char* direction(int calDirection){
	if ((calDirection) < 23) {
		return " North";
	}
	if ((calDirection > 22) && (calDirection < 68)) {
		return " NorthEast";
	}
	if ((calDirection > 67) && (calDirection < 113)) {
		return " East";
	}
	if ((calDirection > 112) && (calDirection < 158)) {
		return " SouthEast";
	}
	if ((calDirection > 157) && (calDirection < 203)) {
		return " South";
	}
	if ((calDirection > 202) && (calDirection < 247)) {
		return " SouthWest";
	}
	if ((calDirection > 246) && (calDirection < 292)) {
		return " West";
	}
	if ((calDirection > 291) && (calDirection < 337)) {
		return " NorthWest";
	}
	if ((calDirection > 336) && (calDirection <= 360)) {
		return " North";
	}
	return "No data!";
}

void sendEmail(){
    EMailSender::EMailMessage message;
    message.subject = "RadioActive Weather Server";
    getWindDirection();
    message.message = ("Ciao come stai<br>io bene."
    		"<span style=\"font-size: 26px\";>Outside Temperature now "
			+String(sensors.getTempCByIndex(1))+
					"C<br>" +
					("<br> Inside Temperature now ")
					+String(sensors.getTempCByIndex(0))+
					"C<br>"
					"<br> Wind Speed now "
					+String(windSpeed)+
					" mph<br>"
					"<br> Direction now "
					+direction(calDirection)+
					"<br>"
					"<br> Humidity now "
					+String(bme.getHumidity())+
					"%<br>"
					"<br> Pressure now "
					+String (bme.getPressure_MB())+
					"mb%<br>"
					"<br> Outside Min Temperature was "
					+String(OutminTemp)+
					"C<br>"
					"<br> Outside Max Temperature was "
					+String(OutmaxTemp)+
					"C<br>"
					"<br> Inside Min Temperature was "
					+String(InminTemp)+
					"C<br>"
					"<br> Inside Max Temperature was "
					+String(InmaxTemp)+
					"C");

    const char* emailToSend = "receiver.mischianti@gmail.com";
    EMailSender::Response resp = emailSend.send(emailToSend, message);

    Serial.println(F("Sending status: "));

    Serial.println(resp.status);
    Serial.println(resp.code);
    Serial.println(resp.desc);
}

I get a w5100 shield and now can try to test It.

Bye Renzo

Attachments:

You must be logged in to view attached files.

[Renzo Mischianti]

Hi tpapas,
try to add pin 10 HIGH (as documentation)

    pinMode(53, OUTPUT);
    pinMode(4, OUTPUT);
    digitalWrite(4, HIGH);
    pinMode(10, OUTPUT);
    digitalWrite(10, HIGH);



and add this code to check If there are some problem

  // Check for Ethernet hardware present
  if (Ethernet.hardwareStatus() == EthernetNoHardware) {
    Serial.println("Ethernet shield was not found.  Sorry, can't run without hardware. :(");
    while (true) {
      delay(1); // do nothing, no point running without Ethernet hardware
    }
  }

  if (Ethernet.linkStatus() == LinkOFF) {
    Serial.println("Ethernet cable is not connected.");
  }

I don’t have a w5100 shield, but this is a must have :P.

And check if shield is fitted good, sometime the problems is more simple than expected.

Bye Renzo

[Renzo Mischianti]

We are going quite off topic, so I create a topic in the relative section, and I need some time to check It. But I will response to you in that section.

Weather radio station with Arduino UNO/MEGA Ethernet problem

Bye Renzo

[Renzo Mischianti]

If the email work the ethernet work, the arduino clones, usually, work like a charm,

With this information It’s very difficult to do a debug.

You must give me more information, what kind of problem do you have?

Bye Renzo



[Renzo Mischianti]

Hehehehhe, I’m moved 😛

For the recipient you can follow the instruction on the article

Send email with attachments (v2.x library): Arduino Ethernet – 1

there is an example on library

Distribution list example

and the relative forum topic

EMail distribution list – more than one recipient

If you have some trouble write here.

Bye Renzo

[Renzo Mischianti]

Hi tpasas,

you are right, i put not clear label,

<YOUR-SENDGRID-API-KEY> is the user or apikey name, by default, if i remember, is ‘apikey’,



YOUR-SENDGRID-PASSWD> is the key generated the long string.



<FROM-EMAIL> is the verified email address sender.



I think now is more comprehensive.



When i have time i write a little guide.

Bye Renzo

[Renzo Mischianti]

you must set the from (in the declaration of EMailSender) the verified email, I think It’s sufficient, I don’t remember other operation.

Bye Renzo

[Renzo Mischianti]

Yes, all credential is encoded in base64.

Bye Renzo

[Renzo Mischianti]

Hi tpapas,

Next I try to free some memory from my library or do something alternative for Arduino UNO.

Now to use SMTP you must follow this step

https://sendgrid.com/docs/for-developers/sending-email/getting-started-smtp/

and

https://sendgrid.com/docs/for-developers/sending-email/integrating-with-the-smtp-api/

First you must validate the sender email than create api key to use as login and passwd.

If you have problem, write here.

Bye Renzo

[Renzo Mischianti]

Hi tpapas,

It’s the memory usage, i need to recreate the context and try to do some trick to work with this few memory.

I think for now the better solution is to get an Arduino Mega and retry, UNO had very low stats.

But i try to keep in work your configuration when find some time.

Bye Renzo

[Renzo Mischianti]

Yes,

Try to uncomment the EMailSender debug also.

#define EMAIL_SENDER_DEBUG

With this define uncommented you must receive all the client request response.

[Renzo Mischianti]

If you copy and paste my code you must substitute the double quote because the editor change these in another character.

But do the change manually to all serial, you musto incapsulate string inside F().



The structure of static IP use some memory also.



[Renzo Mischianti]

If you rewrite

Serial.print(“IP address “);

in

Serial.print(F(“IP address “));

You free 11*1byte





[Renzo Mischianti]

Hi tpapas,

I think that is a memory problem again, try to put inside F(“string”) the serial string to free some memory, but Arduino UNO with 2k of ram It’s quite tedious.

I don’t have a w5100 shield only enc26j80 that It’s quite unusable with Arduino UNO.

Bye Renzo

[Renzo Mischianti]

Hi tpapas,

It’s strange, I test the code (without shield) but I can read the Serial output on monitor.

Try to uncomment the EMailSender debug also.

#define EMAIL_SENDER_DEBUG

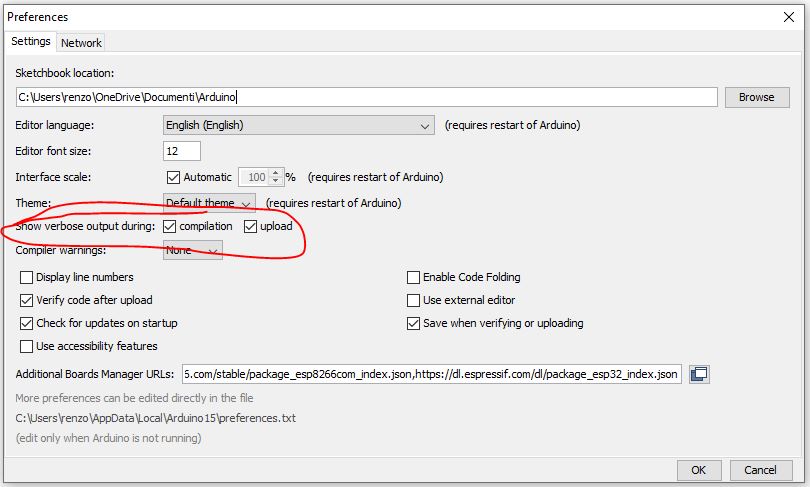

I have 1.8.13 version of Arduino IDE and code execute (with error because I don’t install the shield).

Bye Renzo

[Author]

Posts
