simpleServer ftp android

This topic has 30 replies, 2 voices, and was last updated 3 years, 10 months ago by moni.

Viewing 30 reply threads

Author

Posts

3 December 2021 at 06:53 #16902
moniteur41
hello thanks for your work, i loaded from github, i replaced the FtpServer.cpp file.
the application connects well, starts loading, then nothing, a message is displayed real time out.
on the app the information I have are: site free -211 end -PASV.
j on the console the last line is: Command is: PASV
Connection management set to passive
Listening at xxx.xxx.xxx.xxx:50009
thank you for your help

Attachments:
You must be logged in to view attached files.
3 December 2021 at 06:56 #16903
moniteur41
I can’t put an image
3 December 2021 at 08:35 #16904
Renzo Mischianti
Keymaster
Hi moniteur41,
to upload photo you can use 2 way, create an account or use service like Postimage .

Try to add
SPIFFS.format();
after begin phase.

Bye Renzo
4 December 2021 at 08:21 #16907
moni
Participant
4 December 2021 at 08:22 #16908
moni
Participant
thank
4 December 2021 at 09:09 #16911
Renzo Mischianti
Keymaster
Hi Moni,
in the screen seems there isn’t nothing strange, did you try to transfer data?
Bye Renzo
5 December 2021 at 07:46 #16921
moniteur41
hello, this is what the ftp screen displays on my phone.
it cannot display the directory. While with Filezilla no problem, am I missing something? thank you
5 December 2021 at 07:47 #16922
moniteur41
5 December 2021 at 09:36 #16923
Renzo Mischianti
Keymaster
Hi Moniteur,
please insert the sketch the sketch on this forum, and the key file with ftp configuration, we are going to check.
I try with the SD (as I can understand from serial output) with an esp32 and AndFTP and It’s work for me.

Bye Renzo
5 December 2021 at 11:02 #16926
moniteur41
i’m thinking one thing, what is your sd library and what version? can it be that? thank you
9 December 2021 at 11:49 #16966
Renzo Mischianti
Keymaster
Hi,
and please add the compiling output also please.
Thanks Renzo
10 December 2021 at 06:14 #16968
moniteur41
thanks moniteur41
10 December 2021 at 07:27 #16969
Renzo Mischianti
Keymaster
Hi,
that screenshot is only the last part. You must copy and paste in a txt file.
Bye Renzo
12 December 2021 at 06:45 #16981
moniteur41
hello, can explain to me what you want, i start. thank you.
can you give me the link to the bookstore you work with. the problem may come from this sdcard library
12 December 2021 at 17:22 #16982
Renzo Mischianti
Keymaster
Hi moniteur,
in the space of the output (that you attach a screenshot) there are a lot of line, try to cut and paste.

I use standard SD library, but if you change the FtpServerKey.h with SD I can’t know whitch library you use and what information you want.

Try to give me all the information you have, without information it is impossible to find a solution.

Bye Renzo
12 December 2021 at 17:54 #16983
moniteur41
hello, I am starting with the esp :-). i have arduino ide version 1.18.16. I have the esp version card management for ide 3.0.2.
I have the standard SD library.
With filezilla I have no problem, I display the directory well.
I haven’t changed your program.
I have a wifi connection.
I only have a connection request.

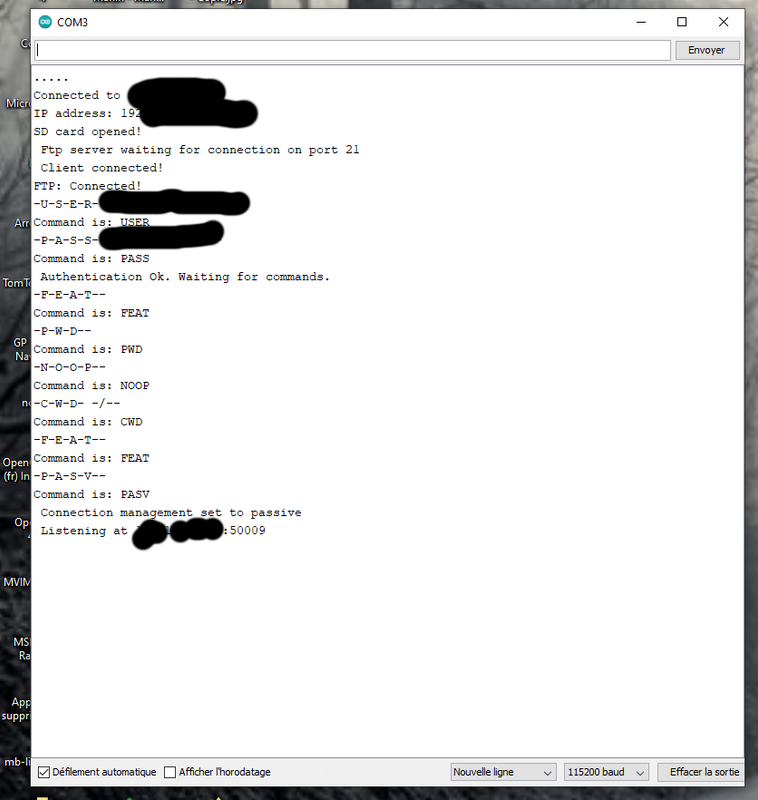

What I see on the feedback console is:
Connected to xxxxxxxxxx
IP address: xxxxxxxxxxx
SD card opened!
Ftp server waiting for connection on port 21
Client connected!
FTP: Connected!
-U-S-E-R- -e-s-p-8-2-6-6–
Command is: USER
-P-A-S-S- -e-s-p-8-2-6-6-
Command is: PASS
Authentication Ok. Waiting for commands.
-F-E-A-T-
Command is: FEAT
-P-W-D-
Command is: PWD
-N-O-O-P-
Command is: NOOP
-C-W-D- – / –
Command is: CWD
-F-E-A-T-
Command is: FEAT
-P-A-S-V-
Command is: PASV
Connection management set to passive
Listening at 192.168.1.63:50009
__________________________________________

the esp expects a return from the ANDFTP application I think?
the application connects well
displays: loading and it spins endlessly and the app disconnects.

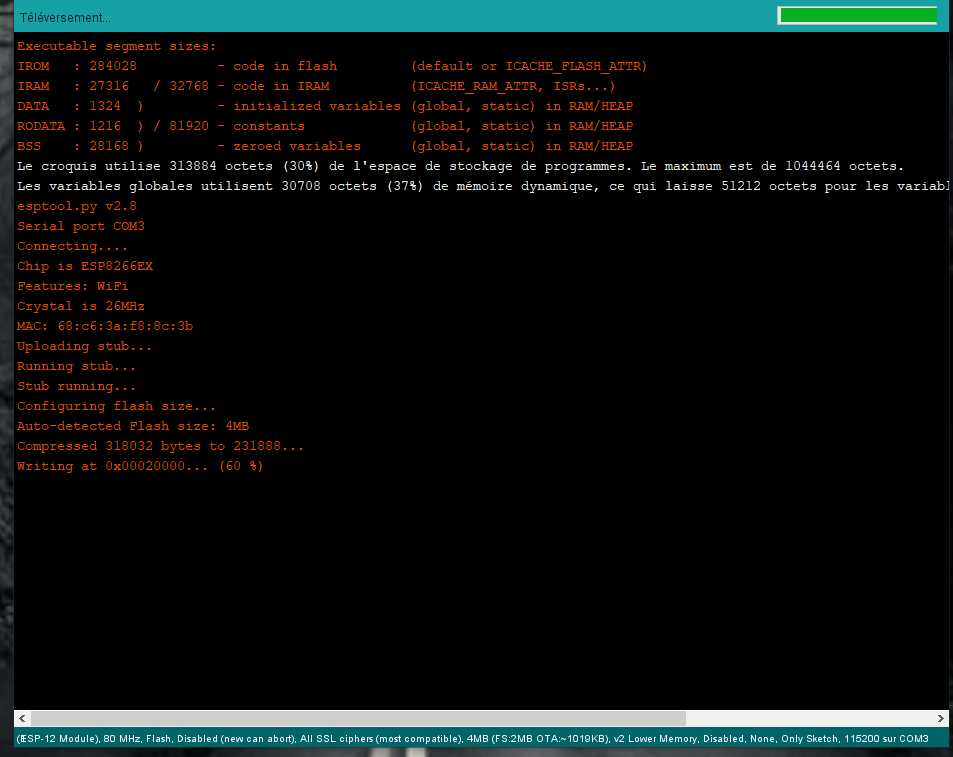

on the compilation window here is what there is:

Executable segment sizes:
ICACHE: 32768 – flash cache instruction
IROM: 292420 – code in flash (default or ICACHE_FLASH_ATTR)
IRAM: 28321/32768 – code in IRAM (IRAM_ATTR, ISRs …)
DATA: 1608) – initialized variables (global, static) in RAM / HEAP
RODATA: 1608) / 81920 – constants (global, static) in RAM / HEAP
BSS: 29008) – zeroed variables (global, static) in RAM / HEAP
The sketch uses 323,957 bytes (31%) of the program storage space. The maximum is 1044464 bytes.
Global variables use 32,224 bytes (39%) of dynamic memory, leaving 49,696 bytes for local variables. The maximum is 81,920 bytes.
esptool.py v3.0
Serial port COM3
Connecting ….
Chip is ESP8266EX
Features: WiFi
Crystal is 26MHz
MAC: 68: c6: 3a: f8: 8c: 3b
Uploading stub …
Running stub …
Stub running …
Configuring flash size …
Auto-detected Flash size: 4MB
Compressed 328112 bytes to 238276 …
Writing at 0x00000000 … (6%)
Writing at 0x00004000 … (13%)
Writing at 0x00008000 … (20%)
Writing at 0x0000c000 … (26%)
Writing at 0x00010000 … (33%)
Writing at 0x00014000 … (40%)
Writing at 0x00018000 … (46%)
Writing at 0x0001c000 … (53%)
Writing at 0x00020000 … (60%)
Writing at 0x00024000 … (66%)
Writing at 0x00028000 … (73%)
Writing at 0x0002c000 … (80%)
Writing at 0x00030000 … (86%)
Writing at 0x00034000 … (93%)
Writing at 0x00038000 … (100%)

Thank you for yo

13 December 2021 at 10:57 #16984

Renzo Mischianti

Keymaster

Hi,
i tested the same env and works correctly, here the console output of Arudino IDE


C:\Program Files (x86)\Arduino\arduino-builder -dump-prefs -logger=machine -hardware C:\Program Files (x86)\Arduino\hardware -hardware C:\Users\renzo\AppData\Local\Arduino15\packages -tools C:\Program Files (x86)\Arduino\tools-builder -tools C:\Program Files (x86)\Arduino\hardware\tools\avr -tools C:\Users\renzo\AppData\Local\Arduino15\packages -built-in-libraries C:\Program Files (x86)\Arduino\libraries -libraries C:\Users\renzo\OneDrive\Documenti\Arduino\libraries -fqbn=esp8266:esp8266:d1_mini:xtal=80,vt=flash,exception=disabled,stacksmash=disabled,ssl=all,mmu=3232,non32xfer=fast,eesz=4M2M,ip=lm2f,dbg=Disabled,lvl=None____,wipe=none,baud=921600 -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\renzo\AppData\Local\Temp\arduino_build_409581 -warnings=all -build-cache C:\Users\renzo\AppData\Local\Temp\arduino_cache_944340 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.xtensa-lx106-elf-gcc.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.xtensa-lx106-elf-gcc-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mklittlefs.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mklittlefs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mklittlefs-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mklittlefs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.python3.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\python3\3.7.2-post1 -prefs=runtime.tools.python3-3.7.2-post1.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\python3\3.7.2-post1 -prefs=runtime.tools.mkspiffs.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mkspiffs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mkspiffs-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mkspiffs\3.0.4-gcc10.3-1757bed -verbose D:\Projects\Arduino\sloeber-workspace-ftp-server\esp8266_SD_FtpServer\esp8266_SD_FtpServer.ino
C:\Program Files (x86)\Arduino\arduino-builder -compile -logger=machine -hardware C:\Program Files (x86)\Arduino\hardware -hardware C:\Users\renzo\AppData\Local\Arduino15\packages -tools C:\Program Files (x86)\Arduino\tools-builder -tools C:\Program Files (x86)\Arduino\hardware\tools\avr -tools C:\Users\renzo\AppData\Local\Arduino15\packages -built-in-libraries C:\Program Files (x86)\Arduino\libraries -libraries C:\Users\renzo\OneDrive\Documenti\Arduino\libraries -fqbn=esp8266:esp8266:d1_mini:xtal=80,vt=flash,exception=disabled,stacksmash=disabled,ssl=all,mmu=3232,non32xfer=fast,eesz=4M2M,ip=lm2f,dbg=Disabled,lvl=None____,wipe=none,baud=921600 -vid-pid=1A86_7523 -ide-version=10813 -build-path C:\Users\renzo\AppData\Local\Temp\arduino_build_409581 -warnings=all -build-cache C:\Users\renzo\AppData\Local\Temp\arduino_cache_944340 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.xtensa-lx106-elf-gcc.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.xtensa-lx106-elf-gcc-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\xtensa-lx106-elf-gcc\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mklittlefs.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mklittlefs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mklittlefs-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mklittlefs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.python3.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\python3\3.7.2-post1 -prefs=runtime.tools.python3-3.7.2-post1.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\python3\3.7.2-post1 -prefs=runtime.tools.mkspiffs.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mkspiffs\3.0.4-gcc10.3-1757bed -prefs=runtime.tools.mkspiffs-3.0.4-gcc10.3-1757bed.path=C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\tools\mkspiffs\3.0.4-gcc10.3-1757bed -verbose D:\Projects\Arduino\sloeber-workspace-ftp-server\esp8266_SD_FtpServer\esp8266_SD_FtpServer.ino
Using board 'd1_mini' from platform in folder: C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2
Using core 'esp8266' from platform in folder: C:\Users\renzo\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2
Detecting libraries used...
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for ESP8266WiFi.h: [ESP8266WiFi@1.0]
ResolveLibrary(ESP8266WiFi.h)
  -> candidates: [ESP8266WiFi@1.0]
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266WiFi\\src" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for SD.h: [SD@2.0.0]
ResolveLibrary(SD.h)
  -> candidates: [SD@2.0.0]
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266WiFi\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SD\\src" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for SDFS.h: [SDFS@0.1.0]
ResolveLibrary(SDFS.h)
  -> candidates: [SDFS@0.1.0]
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266WiFi\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SD\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SDFS\\src" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for SPI.h: [SPI@1.0]
ResolveLibrary(SPI.h)
  -> candidates: [SPI@1.0]
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266WiFi\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SD\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SDFS\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SPI" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for SdFat.h: [ESP8266SdFat@2.0.2]
ResolveLibrary(SdFat.h)
  -> candidates: [ESP8266SdFat@2.0.2]
"C:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-g++" -D__ets__ -DICACHE_FLASH -U__STRICT_ANSI__ -D_GNU_SOURCE "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/lwip2/include" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2/tools/sdk/libc/xtensa-lx106-elf/include" "-IC:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581/core" -c -w -Werror=return-type -Os -g -free -fipa-pta -mlongcalls -mtext-section-literals -fno-rtti -falign-functions=4 -std=gnu++17 -ffunction-sections -fdata-sections -fno-exceptions -DMMU_IRAM_SIZE=0x8000 -DMMU_ICACHE_SIZE=0x8000 -w -x c++ -E -CC -DNONOSDK22x_190703=1 -DF_CPU=80000000L -DLWIP_OPEN_SRC -DTCP_MSS=536 -DLWIP_FEATURES=1 -DLWIP_IPV6=0 -DARDUINO=10813 -DARDUINO_ESP8266_WEMOS_D1MINI -DARDUINO_ARCH_ESP8266 "-DARDUINO_BOARD=\"ESP8266_WEMOS_D1MINI\"" -DFLASHMODE_DIO -DESP8266 "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\cores\\esp8266" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\variants\\d1_mini" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266WiFi\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SD\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SDFS\\src" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\SPI" "-IC:\\Users\\renzo\\AppData\\Local\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.2\\libraries\\ESP8266SdFat\\src" "C:\\Users\\renzo\\AppData\\Local\\Temp\\arduino_build_409581\\sketch\\esp8266_SD_FtpServer.ino.cpp" -o nul -DARDUINO_LIB_DISCOVERY_PHASE
Alternatives for SimpleFTPServer.h: [Simple_FTP_Server@1.0.0]
ResolveLibrary(SimpleFTPServer.h)
  -> candidates: [Simple_FTP_Server@1.0.0]

Check the library version.

Bye Renzo

14 December 2021 at 05:32 #16988
moniteur41
hello, how do you get all this output info?
14 December 2021 at 07:53 #16989
Renzo Mischianti
Keymaster
Go up in this console

Bye Renzo
15 December 2021 at 05:01 #17005
moniteur41
hello, I don’t have this in mine, do we need to activate something? thank you
15 December 2021 at 07:52 #17006
Renzo Mischianti
Keymaster
Ops… I think I didn’t say you to activate verbose output

I think this fix the problem.

bye Renzo
15 December 2021 at 20:20 #17014
moniteur41
hello, thanks i will try, and come back.
15 December 2021 at 20:35 #17015
moniteur41
maybe a track I don’t have the same address for the library

Plusieurs bibliothèque trouvées pour "SD.h" Utilisé : C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\SD Non utilisé : C:\Program Files (x86)\Arduino\libraries\SD Utilisation de la bibliothèque ESP8266WiFi version 1.0 dans le dossier: C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\ESP8266WiFi Utilisation de la bibliothèque SD version 2.0.0 dans le dossier: C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\SD Utilisation de la bibliothèque SDFS version 0.1.0 dans le dossier: C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\SDFS Utilisation de la bibliothèque SPI version 1.0 dans le dossier: C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\SPI Utilisation de la bibliothèque ESP8266SdFat version 2.0.2 dans le dossier: C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2\libraries\ESP8266SdFat Utilisation de la bibliothèque SimpleFTPServer version 1.0.1 dans le dossier: C:\Users\2040d\Documents\Arduino\libraries\SimpleFTPServer "C:\\Users\\2040d\\AppData\\Local\\Arduino15\\packages\\esp8266\\tools\\xtensa-lx106-elf-gcc\\3.0.4-gcc10.3-1757bed/bin/xtensa-lx106-elf-size" -A "C:\\Users\\2040d\\AppData\\Local\\Temp\\arduino_build_524047/FTPServer_esp8266_esp3222.ino.elf" Le croquis utilise 323957 octets (31%) de l'espace de stockage de programmes. Le maximum est de 1044464 octets. Les variables globales utilisent 32224 octets (39%) de mémoire dynamique, ce qui laisse 49696 octets pour les variables locales. Le maximum est de 81920 octets. C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\tools\python3\3.7.2-post1/python3 -I C:\Users\2040d\AppData\Local\Arduino15\packages\esp8266\hardware\esp8266\3.0.2/tools/upload.py --chip esp8266 --port COM3 --baud 115200 --before default_reset --after hard_reset write_flash 0x0 C:\Users\2040d\AppData\Local\Temp\arduino_build_524047/FTPServer_esp8266_esp3222.ino.bin esptool.py v3.0
16 December 2021 at 07:47 #17022
Renzo Mischianti
Keymaster
Hi moniteur41,
the library and software are all ok, did you try to write and read from your SD??
Bye Renzo
18 December 2021 at 09:41 #17172
moniteur41
hello yes i can write and read to my sd card from win file manager.

merci
18 December 2021 at 10:02 #17173
Renzo Mischianti
Keymaster
No no, write and read from microcontroller..
Bye Renzo
18 December 2021 at 11:15 #17174
Moniteur
Oui ça marche aussi j’ai fait avec filezila
18 December 2021 at 17:27 #17175
Renzo Mischianti
Keymaster
I can’t replicate the issue.
I try with my devices, and It’s work.
Bye Renzo
19 December 2021 at 11:13 #17176
moniteur41
a question is what to make an adjustment in the parameters of the tel?
19 December 2021 at 21:54 #17177
Renzo Mischianti
Keymaster
Hi,
I add the IP and all works, here are my settings.

Attachments:
You must be logged in to view attached files.
22 December 2021 at 16:48 #17292
moni
Participant
merci j’ai la même configuration,je ne comprend pas ce qui bloque.
