Now we will learn the configuration of our E32 UART LoRa device based on popular SX1276/SX1278 Wireless Modules.

LoRa E32 device for Arduino, esp32 or esp8266: configuration
LoRa E32 device for Arduino, esp32 or esp8266: configuration

You can find here AliExpress (433MHz 5Km) - AliExpress (433MHz 8Km) - AliExpress (433MHz 16Km) - AliExpress (868MHz 915MHz 5.5Km) - AliExpress (868MHz 915MHz 8Km)

As I already specified, I created a dedicated library for this device because configuration and transmission mode are not so simple to manage.

sx1278 sx1276 wireless lora uart module serial 3000m arduino 433 rf

If you have trouble with the freeze device, you must put a pull-up 4.7k resistor or better connect to the device AUX pin.

Library

You can find my library here, and It’s available on Arduino IDE library manager.

EByte LoRa E22 E32 Arduino library manager
EByte LoRa E22 E32 Arduino library manager

To download.

Click the DOWNLOADS button in the top right corner, rename the uncompressed folder LoRa_E32.

Check that the LoRa_E32 folder contains LoRa_E32.cpp and LoRa_E32.h.

Place the LoRa_E32 library folder in your /libraries/ folder.

You may need to create the libraries subfolder if it’s your first library.

Restart the IDE.

Connection schemas for programming

For the basic usage, we had used this configuration for Arduino. Still, you are working only in “Normal mode” in this configuration, and we will manage only the needed pin dynamic (RX, TX) to simplify the process.

Normal configuration (transparent)

LoRa E32-TTL-100 Arduino breadboard
M0GND (Set normal mode)
M1GND (Set normal mode)
TXPIN 2 (PullUP 4,7KΩ)
RXPIN 3 (PullUP 4,7KΩ & Voltage divider)
AUXNot connected
VCC3.3v
GNDGND

and this configuration for Wemos D1 mini:

LoRa E32-TTL-100 Wemos D1 breadboard
M0GND (Set normal mode)
M1GND (Set normal mode)
TXPIN D2 (PullUP 4,7KΩ)
RXPIN D3 (PullUP 4,7KΩ)
AUXNot connected
VCC3.3v
GNDGND

ESP-32:

Ebyte LoRa E22 device esp32 dev kit v1 breadboard transparent transmission (normal mode)
Ebyte LoRa E22 device esp32 dev kit v1 breadboard transparent transmission (normal mode)
M0GND (Set normal mode)
M1GND (Set normal mode)
RXTX2 (PullUP 4,7KΩ)
TXRX2 (PullUP 4,7KΩ)
AUXNot connected
VCC3.3v-5v
GNDGND

Arduino MKR WiFi 1010:

Ebyte LoRa Exx Arduino MKR WiFi 1010 normal mode connected breadboard
Ebyte LoRa Exx Arduino MKR WiFi 1010 normal mode connected breadboard
M0GND (Set normal mode)
M1GND (Set normal mode)
TXPIN 14 Tx (PullUP 4,7KΩ)
RXPIN 13 Rx (PullUP 4,7KΩ)
AUXPIN 1 (PullUP 4,7KΩ)
VCC5V
GNDGND

Wiring for programming/sleep mode

To configure It, you must set M0 and M1 to high (remember to use 3.3v).

But If you connect all pins, the library sets HIGH or LOW the pins as needed without a problem.

LoRa E32 TTL 100 Wemos D1 Programming/Sleep mode
M0VCC (Set programming/sleep mode)
M1VCC (Set programming/sleep mode)
TXPIN D2 (PullUP 4,7KΩ)
RXPIN D3 (PullUP 4,7KΩ)
AUXNot connected
VCC3.3v
GNDGND
LoRa E32 TTL 100 Arduino Programming/Sleep mode
M03.3v (Set programming/sleep mode)
M13.3v (Set programming/sleep mode)
TXPIN 2 (PullUP 4,7KΩ)
TXPIN 3 (PullUP 4,7KΩ & Voltage divider)
AUXNot connected
VCC3.3v
GNDGND

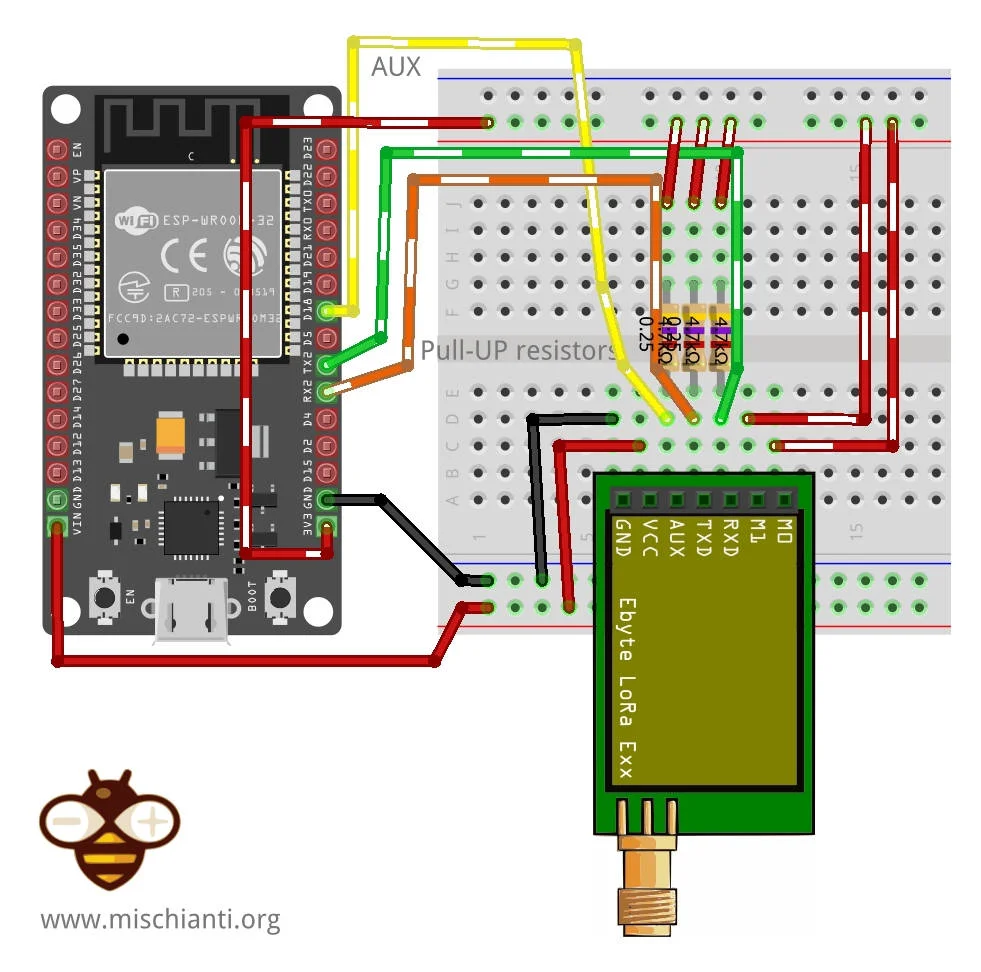

LoRa E32 E220 ESP32 DEV KIT V1 configuration mode
LoRa E32 E220 ESP32 DEV KIT V1 configuration mode
M0 3.3v (Set programming/sleep mode)
M1 3.3v (Set programming/sleep mode)
RXTX2 (PullUP 4,7KΩ)
TXRX2 (PullUP 4,7KΩ)
AUXNot connected
VCC3.3v-5v
GNDGND

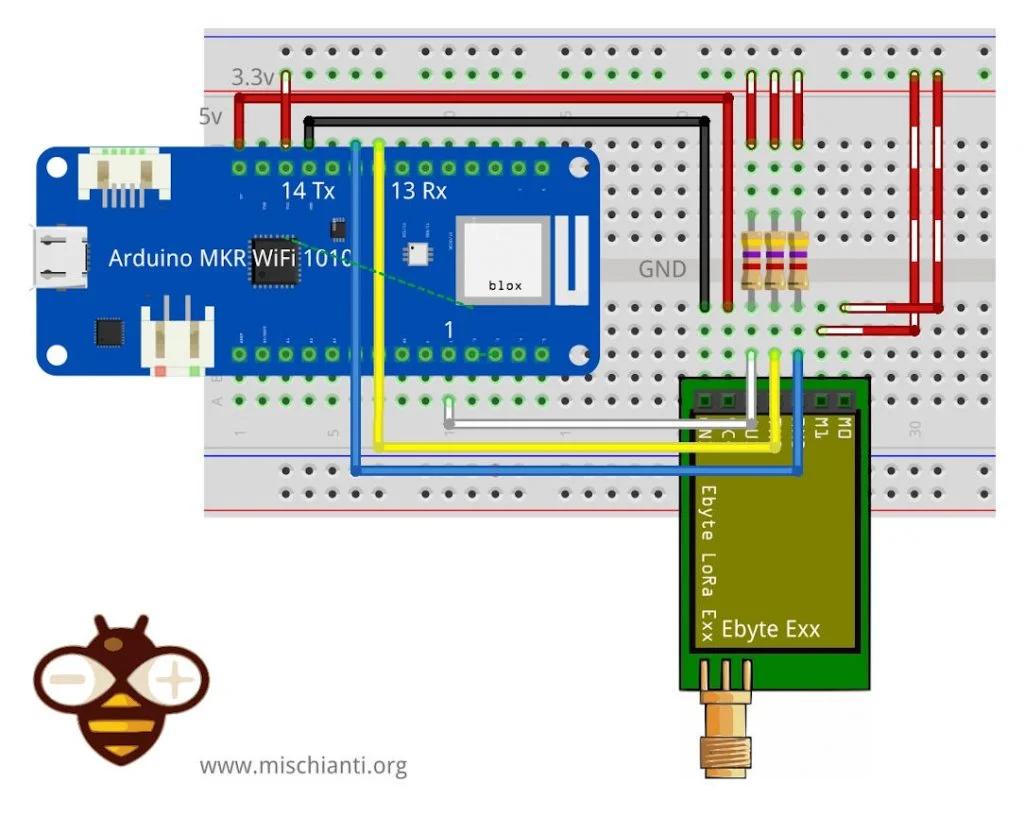

LoRa E32 E220 Arduino MKR WiFi 1010 sleep/config mode
LoRa E32 E220 Arduino MKR WiFi 1010 sleep/config mode
M0 3.3v (Set programming/sleep mode)
M1 3.3v (Set programming/sleep mode)
TXPIN 14 Tx (PullUP 4,7KΩ)
RXPIN 13 Rx (PullUP 4,7KΩ)
AUXPIN 1 (PullUP 4,7KΩ)
VCC5V
GNDGND

In this mode, you can manage the configuration of the device

Basic configuration option

ADDHHigh address byte of the module (the default 00H)00H-FFH
ADDLLow address byte of the module (the default 00H)00H-FFH
SPEDInformation about data rate parity bit and Air data rate
CHANCommunication channel(410M + CHAN*1M), default 17H (433MHz), valid only for 433MHz device00H-1FH
OPTIONType of transmission, pull-up settings, wake-up time, FEC, Transmission power

You can find configuration options in the Library article.

Get configuration

Arduino example sketch

/*
 * LoRa E32-TTL-100
 * Get configuration.
 * https://mischianti.org
 *
 * E32-TTL-100----- Arduino UNO
 * M0         ----- 3.3v
 * M1         ----- 3.3v
 * TX         ----- PIN 2 (PullUP)
 * RX         ----- PIN 3 (PullUP & Voltage divider)
 * AUX        ----- Not connected
 * VCC        ----- 3.3v/5v
 * GND        ----- GND
 *
 */
#include "Arduino.h"
#include "LoRa_E32.h"

LoRa_E32 e32ttl100(2, 3); // e32 TX e32 RX
void printParameters(struct Configuration configuration);
void printModuleInformation(struct ModuleInformation moduleInformation);

void setup() {
	Serial.begin(9600);
	delay(500);

	// Startup all pins and UART
	e32ttl100.begin();

	ResponseStructContainer c;
	c = e32ttl100.getConfiguration();
	// It's important get configuration pointer before all other operation
	Configuration configuration = *(Configuration*) c.data;
	Serial.println(c.status.getResponseDescription());
	Serial.println(c.status.code);

	printParameters(configuration);

	ResponseStructContainer cMi;
	cMi = e32ttl100.getModuleInformation();
	// It's important get information pointer before all other operation
	ModuleInformation mi = *(ModuleInformation*)cMi.data;

	Serial.println(cMi.status.getResponseDescription());
	Serial.println(cMi.status.code);

	printModuleInformation(mi);
    c.close();
}

void loop() {

}
void printParameters(struct Configuration configuration) {
	Serial.println("----------------------------------------");

	Serial.print(F("HEAD BIN: "));  Serial.print(configuration.HEAD, BIN);Serial.print(" ");Serial.print(configuration.HEAD, DEC);Serial.print(" ");Serial.println(configuration.HEAD, HEX);
	Serial.println(F(" "));
	Serial.print(F("AddH BIN: "));  Serial.println(configuration.ADDH, BIN);
	Serial.print(F("AddL BIN: "));  Serial.println(configuration.ADDL, BIN);
	Serial.print(F("Chan BIN: "));  Serial.print(configuration.CHAN, DEC); Serial.print(" -> "); Serial.println(configuration.getChannelDescription());
	Serial.println(F(" "));
	Serial.print(F("SpeedParityBit BIN    : "));  Serial.print(configuration.SPED.uartParity, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTParityDescription());
	Serial.print(F("SpeedUARTDataRate BIN : "));  Serial.print(configuration.SPED.uartBaudRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTBaudRate());
	Serial.print(F("SpeedAirDataRate BIN  : "));  Serial.print(configuration.SPED.airDataRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getAirDataRate());

	Serial.print(F("OptionTrans BIN       : "));  Serial.print(configuration.OPTION.fixedTransmission, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFixedTransmissionDescription());
	Serial.print(F("OptionPullup BIN      : "));  Serial.print(configuration.OPTION.ioDriveMode, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getIODroveModeDescription());
	Serial.print(F("OptionWakeup BIN      : "));  Serial.print(configuration.OPTION.wirelessWakeupTime, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getWirelessWakeUPTimeDescription());
	Serial.print(F("OptionFEC BIN         : "));  Serial.print(configuration.OPTION.fec, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFECDescription());
	Serial.print(F("OptionPower BIN       : "));  Serial.print(configuration.OPTION.transmissionPower, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getTransmissionPowerDescription());

	Serial.println("----------------------------------------");

}
void printModuleInformation(struct ModuleInformation moduleInformation) {
	Serial.println("----------------------------------------");
	Serial.print(F("HEAD BIN: "));  Serial.print(moduleInformation.HEAD, BIN);Serial.print(" ");Serial.print(moduleInformation.HEAD, DEC);Serial.print(" ");Serial.println(moduleInformation.HEAD, HEX);

	Serial.print(F("Freq.: "));  Serial.println(moduleInformation.frequency, HEX);
	Serial.print(F("Version  : "));  Serial.println(moduleInformation.version, HEX);
	Serial.print(F("Features : "));  Serial.println(moduleInformation.features, HEX);
	Serial.println("----------------------------------------");

}

Here is the result of the sketch

Begin
Success
1
----------------------------------------
HEAD BIN: 11000000 192 C0

AddH BIN: 0
AddL BIN: 0
Chan BIN: 23 -> 433MHz

SpeedParityBit BIN    : 0 -> 8N1 (Default)
SpeedUARTDataRate BIN : 11 -> 9600bps (default)
SpeedAirDataRate BIN  : 10 -> 2.4kbps (default)
OptionTrans BIN       : 0 -> Transparent transmission (default)
OptionPullup BIN      : 1 -> TXD, RXD, AUX are push-pulls/pull-ups
OptionWakeup BIN      : 0 -> 250ms (default)
OptionFEC BIN         : 1 -> Turn on Forward Error Correction Switch (Default)
OptionPower BIN       : 0 -> 20dBm (Default)
----------------------------------------
Success
1
----------------------------------------
HEAD BIN: 11000011 195 C3
Model no.: 32
Version  : 44
Features : 14
----------------------------------------

If you change pins 2, 3 with D2, D3 you can do the same operation with your Wemos D1 or other esp8266/esp32.

LoRa E32 request configuration logic analyzer Arduino
LoRa E32 request configuration logic analyzer Arduino

To get the correct information, I add some #define to change the device type (same #define manage more other devices, I create only one for type for simplicity).

#define E32_TTL_100
#define E32_TTL_500
#define E32_TTL_1W

You can select only one of them. The parameter changes the Transmission power constant as described in the configuration schema.

In the same manner, you can select one reference frequences

#define FREQUENCY_433
#define FREQUENCY_170
#define FREQUENCY_470
#define FREQUENCY_868
#define FREQUENCY_915

You can choose only one of them. The parameter changes the reference frequencies only for display purposes,

Set configuration

Naturally, when you have a configuration you want to change It for your purpose, I think you can get the configuration from a device, modify what you want and set It.

Ricorda che il parametro saveType è fondamentale per mantenere le opzioni al riavvio del dispositivo, WRITE_CFG_PWR_DWN_LOSE naturalmente perderai le impostazioni con WRITE_CFG_PWR_DWN_SAVE non perderai le impostazioni.

Here is an Arduino sketch:

/*
 * LoRa E32-TTL-100
 * Get configuration.
 * https://mischianti.org
 *
 * E32-TTL-100----- Arduino UNO
 * M0         ----- 3.3v
 * M1         ----- 3.3v
 * TX         ----- PIN 2 (PullUP)
 * RX         ----- PIN 3 (PullUP & Voltage divider)
 * AUX        ----- Not connected
 * VCC        ----- 3.3v/5v
 * GND        ----- GND
 *
 */
#include "Arduino.h"
#include "LoRa_E32.h"

LoRa_E32 e32ttl100(2, 3); // e32 TX e32 RX
void printParameters(struct Configuration configuration);
void printModuleInformation(struct ModuleInformation moduleInformation);

void setup() {
	Serial.begin(9600);
	delay(500);

	// Startup all pins and UART
	e32ttl100.begin();

	ResponseStructContainer c;
	c = e32ttl100.getConfiguration();
	// It's important get configuration pointer before all other operation
	Configuration configuration = *(Configuration*) c.data;
	Serial.println(c.status.getResponseDescription());
	Serial.println(c.status.code);

	printParameters(configuration);
	configuration.ADDL = 0x0;
	configuration.ADDH = 0x1;
	configuration.CHAN = 0x19;

	configuration.OPTION.fec = FEC_0_OFF;
	configuration.OPTION.fixedTransmission = FT_TRANSPARENT_TRANSMISSION;
	configuration.OPTION.ioDriveMode = IO_D_MODE_PUSH_PULLS_PULL_UPS;
	configuration.OPTION.transmissionPower = POWER_17;
	configuration.OPTION.wirelessWakeupTime = WAKE_UP_1250;

	configuration.SPED.airDataRate = AIR_DATA_RATE_011_48;
	configuration.SPED.uartBaudRate = UART_BPS_115200;
	configuration.SPED.uartParity = MODE_00_8N1;

	// Set configuration changed and set to not hold the configuration
	ResponseStatus rs = e32ttl100.setConfiguration(configuration, WRITE_CFG_PWR_DWN_LOSE);
	Serial.println(rs.getResponseDescription());
	Serial.println(rs.code);
	printParameters(configuration);
    c.close();
}

void loop() {

}
void printParameters(struct Configuration configuration) {
	Serial.println("----------------------------------------");

	Serial.print(F("HEAD : "));  Serial.print(configuration.HEAD, BIN);Serial.print(" ");Serial.print(configuration.HEAD, DEC);Serial.print(" ");Serial.println(configuration.HEAD, HEX);
	Serial.println(F(" "));
	Serial.print(F("AddH : "));  Serial.println(configuration.ADDH, BIN);
	Serial.print(F("AddL : "));  Serial.println(configuration.ADDL, BIN);
	Serial.print(F("Chan : "));  Serial.print(configuration.CHAN, DEC); Serial.print(" -> "); Serial.println(configuration.getChannelDescription());
	Serial.println(F(" "));
	Serial.print(F("SpeedParityBit     : "));  Serial.print(configuration.SPED.uartParity, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTParityDescription());
	Serial.print(F("SpeedUARTDatte  : "));  Serial.print(configuration.SPED.uartBaudRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getUARTBaudRate());
	Serial.print(F("SpeedAirDataRate   : "));  Serial.print(configuration.SPED.airDataRate, BIN);Serial.print(" -> "); Serial.println(configuration.SPED.getAirDataRate());

	Serial.print(F("OptionTrans        : "));  Serial.print(configuration.OPTION.fixedTransmission, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFixedTransmissionDescription());
	Serial.print(F("OptionPullup       : "));  Serial.print(configuration.OPTION.ioDriveMode, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getIODroveModeDescription());
	Serial.print(F("OptionWakeup       : "));  Serial.print(configuration.OPTION.wirelessWakeupTime, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getWirelessWakeUPTimeDescription());
	Serial.print(F("OptionFEC          : "));  Serial.print(configuration.OPTION.fec, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getFECDescription());
	Serial.print(F("OptionPower        : "));  Serial.print(configuration.OPTION.transmissionPower, BIN);Serial.print(" -> "); Serial.println(configuration.OPTION.getTransmissionPowerDescription());

	Serial.println("----------------------------------------");

}

Here is the result on the console

Begin
Success
1
----------------------------------------
HEAD : 11000000 192 C0

AddH : 1
AddL : 0
Chan : 23 -> 433MHz

SpeedParityBit     : 0 -> 8N1 (Default)
SpeedUARTDatte  : 11 -> 9600bps (default)
SpeedAirDataRate   : 10 -> 2.4kbps (default)
OptionTrans        : 0 -> Transparent transmission (default)
OptionPullup       : 1 -> TXD, RXD, AUX are push-pulls/pull-ups
OptionWakeup       : 0 -> 250ms (default)
OptionFEC          : 1 -> Turn on Forward Error Correction Switch (Default)
OptionPower        : 0 -> 20dBm (Default)
----------------------------------------
Success
1
----------------------------------------
HEAD : 11000000 192 C0

AddH : 1
AddL : 0
Chan : 25 -> 435MHz

SpeedParityBit     : 0 -> 8N1 (Default)
SpeedUARTDatte  : 111 -> 115200bps
SpeedAirDataRate   : 11 -> 4.8kbps
OptionTrans        : 0 -> Transparent transmission (default)
OptionPullup       : 1 -> TXD, RXD, AUX are push-pulls/pull-ups
OptionWakeup       : 100 -> 1250ms
OptionFEC          : 0 -> Turn off Forward Error Correction Switch
OptionPower        : 1 -> 17dBm
----------------------------------------

The library is quite simple, but in the next chapter, we will test various device options.

Thanks

  1. LoRa E32 device for Arduino, esp32 or esp8266: settings and basic usage
  2. LoRa E32 device for Arduino, esp32 or esp8266: library
  3. LoRa E32 device for Arduino, esp32 or esp8266: configuration
  4. LoRa E32 device for Arduino, esp32 or esp8266: fixed transmission
  5. LoRa E32 device for Arduino, esp32 or esp8266: power saving and sending structured data
  6. LoRa E32 device for Arduino, esp32 or esp8266: WOR (wake on radio) microcontroller and Arduino shield
  7. LoRa E32 device for Arduino, esp32 or esp8266: WOR (wake on radio) microcontroller and WeMos D1 shield
  8. EByte LoRa E32 device for Arduino, esp32 or esp8266: WOR (wake on radio) and new ESP32 shield
  9. Ebyte LoRa E32 with STM32: WOR (wake on radio) and new STM32 shield

Github library


Spread the love

24 Responses

  1. feras says:

    Thank you.
    Can i use Lora E32 (915T30D) 915MHZ with Arduino mega 2560 pro mini?
    if yes how i can chang CAHN to 915 frequency because the max value of CAHN is 255 ?.

  2. Benzo says:

    Hola Renzo,
    Thank you for your excellent tutorial.
    Is it possible to send a large message that exceeds 58 bytes (MAX_SIZE_TX_PACKET)?

    • Hi benzo,
      No you can’t with e32, but e22 can send 240 bytes.
      If you want can send multiple message to the buffer and read all in a single read.
      Bye Renzo

      • Benzo says:

        Ciao Renzo,

        1. The buffer is 512 bytes right? So I can send 8 or 9 packets and then read all them?
        2. What if I have a message larger than 512 bytes?

        • Hi Benzo,
          yes, you read all the buffer with e32ttl.receiveMessage() of you want read single message at time you must use e32ttl.receiveMessageUntil().

          I think if the buffer is full you lost somme message.
          Bye Renzo

  3. Jānis says:

    I’m trying to use esp32. I have used pins D16 and D17 (RX and TX) as shown on the picture. The scketch does not work. Error message: invalid conversion from ‘int’ to ‘HardwareSerial*’ [-fpermissive]

  4. Víctor Ortega says:

    Hi Renzo, thank you for all the explanations and for the library that you have created. I am working with two E32 433T30D and when I try to set a transmissionPower diferent to 20, 17 or 10 the code do not compile. I am interested in use 30dbm to achive as long distance as possible and I can not set it like this. Would you know how to solve the problem?

  5. Vidyadhari says:

    Hi, Mischanti Can we set the channel to 868MHz. Can You please tell us what channel we have to set in the configuration.

    • Hi Vid,
      you can find the specification here.

      you can define mhz before include.

      // One of
      #define FREQUENCY_433
      #define FREQUENCY_170
      #define FREQUENCY_470
      #define FREQUENCY_868
      #define FREQUENCY_915


      if you have some context problem, put It directly in the statesNaming.h

      But It’s needed only to read the current MHz in the getConfiguration, if you don’t set It, the device continues to work correctly.

      Bye Renzo

  6. Vidyadhari says:

    Thank you.
    Can i use Lora E32 (900T30D) 900MHZ with Arduino mega 2560 ?
    if yes how i can chang CAHN to 868 frequency because the max value of CAHN is 255

    • Hi Vid,
      every device have a starting number for channels

      #ifdef FREQUENCY_433
      #define OPERATING_FREQUENCY 410
      #elif defined(FREQUENCY_170)
      #define OPERATING_FREQUENCY 130
      #elif defined(FREQUENCY_470)
      #define OPERATING_FREQUENCY 370
      #elif defined(FREQUENCY_868)
      #define OPERATING_FREQUENCY 862
      #elif defined(FREQUENCY_915)
      #define OPERATING_FREQUENCY 900
      #else
      #define OPERATING_FREQUENCY 410
      #endif


      So to set 868 you must set

      #define FREQUENCY_868

      to read the correct MHz
      But to set, you must put 6 as CAHN considering 862+6=868.

      Bye Renzo

  7. phuc says:

    Hi, Mischanti. Would you like to help me to fix my connection problem?
    I’m using an Arduino Nano and a Lora E32.
    Firstly, I connected my USB-TLL to the Lora 32 and I could configure the Lora 32 via my computer.
    Then, I connected my Arduino Nano to the Lora 32.
    Lora 32 -> Arduino Nano
    GND GND
    VCC 5V
    AUX
    TX 5
    RX 6
    M1 7
    M0 8

    The output is always
    “No response from device! (Check wiring)
    12”

    I tried many cases
    1. My Arduino Nano was placed on the breadboard, the voltage of the pins was about 1.4V
    2. My Arduino Nano was placed on the breadboard, the schematic was exactly like yours
    3. Connected directly Arduino Nano pins to Lora e32 pins. Every pair of pins is a jumper
    4. Connected directly M0 and M1 to 3.3V or 5V
    5. Connected M0 and M1 to pins 7 and 8. I used digitalWrite(pin, LOW) before e32.begin()
    6. Used all constructors of LoRa_E32, one by one (Some constructors couldn’t be used for ESP32)

    I really don’t know which case to try. Your help is very appreciated.

  8. sahar says:

    Hello
    I have E32-900t20D , how i can chang CHAN to 868 frequency
    where should i put ” #define FREQUENCY_868″ in lora-E32.h or in my program
    thank you

  9. SomeWarez says:

    I see this is an older thread but just wanted to see if I could get an quick answer to my question. I have hooked up all pins/wires including M0 and M1 but there isn’t any mention of needing those set for digitalWrite or pinMode, so my question is do we need to set those pins or does the library take care of them. I did see that they get set to -1 in the h file but really no mention anywhere else. Oh one more question, addrH and addrL, are these little endian or big endian?
    Thank you,
    SomeWarez

    • Hi,
      no, you don’t need to set It as input, the library do It for you.
      addH and addL are Address HIGH and Address LOW, the most significant part and the less significant part of the address.
      Bye Renzo

  10. SomeWarez says:

    Sorry forgot to add that I get Success 1 when reading configuration data, but get Save mode returned not recognized! 11 when trying to save the configuration.
    Any help is much appreciated.
    Thank you

Leave a Reply

Your email address will not be published. Required fields are marked *
