How to use SD card with esp32 – 2

When you use a microcontroller, an important feature is storing data, logging or setting, for a web server, or showing images.

Ho to use SD Card Adapter esp32
Ho to use SD Card Adapter esp32

The better solution is an SD card because It’s a simple, small, and low-power device.


SD card has a native host interface apart from the SPI mode for communicating with primary devices. The native interface uses four lines for data transfer where the microcontroller has an SD card controller module, and it needs a separate license. Since the SPI is a widely used protocol and is available in most low-cost microcontrollers, the SPI mode is the widely used interface in low-cost embedded systems. The operating voltage range of the SD family is 2.7V to 3.6V, and this is indicated in the operation condition register (OCR). Exist a low-power SD Card that operates at 1.8V but isn’t so used.


Exists various form factors, but the base pinout is the same.

MMC SD miniSD microSD pins and size factor
Pin NumberPin NameIn SD ModeIn SPI Mode
1DAT2/XConnector Data line 2No use
2DAT3/CSConnector Data line 3Chip Select
3CMD/DICommand / Response LineData Input
4VDD/VDDPower supply (+3.3V)Power supply (+3.3V)
5CLK/SCLKClockSerial Clock
7DAT0/D0Connector Data line 0Data Out
8DAT1/XConnector Data line 1No use

Now we are going to interface SD card for first.

SD pinout


The operating voltage of our esp32 simplifies the schema respect of an Arduino UNO at 5v. To interface the SD card, I use an SD adapter with micro SD, and the result is this.

Vista frontale dei pins dell’adattatore SD
When you use a microcontroller an important features is store data, for logging or setting, for a web server or to show image. The better solution is an SD card, because It's simple, small and low power device.
Now we are going to look how to connect and use with standard SD library with Arduino and esp8266.
SD adapter pins back


ESP32 DOIT DEV KIT v1 pinout
ESP32 DOIT DEV KIT v1 pinout

Here is the connection schema on the breadboard.

esp32 SD card adapter on breadboard
esp32 SD card adapter on the breadboard

And here is the electronic schema.

esp32 SD Card Adapter schema
esp32 SD Card Adapter schema

REMEMBER!! You can use only an 8.3 file. For example, a file like config.txt is accepted, but configuration.text not, because the max file length is eight characters and extension 3.

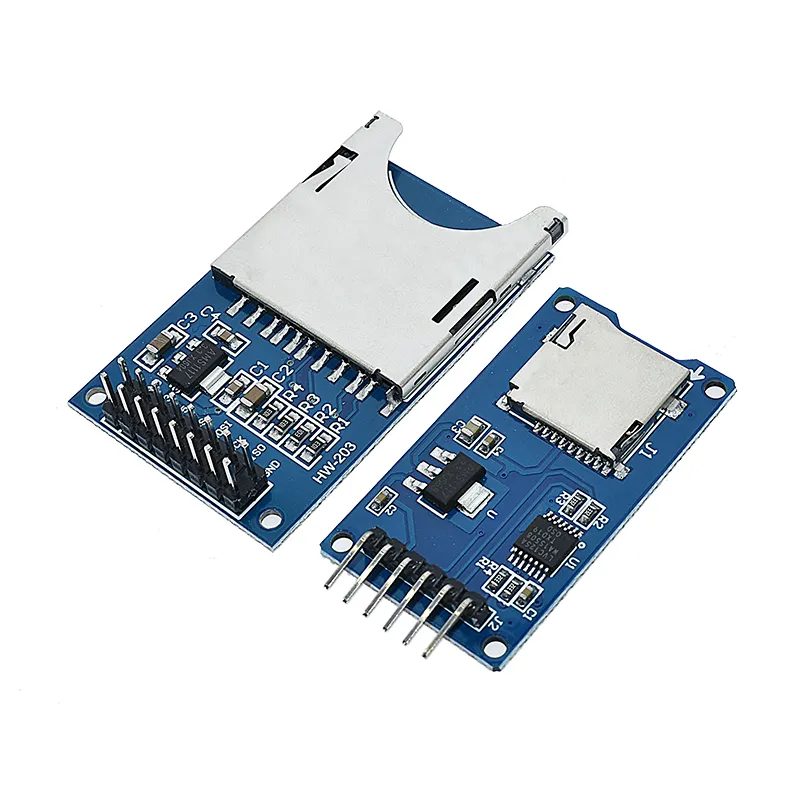

Exists various modules to interface your microcontroller with your device, and It works precisely the Arduino connection schema for the 5v adapter and like esp8266 connection schema for 3.3v. When you buy one, you must pay attention to the operating voltage.

Exists some variant that supports 3.3v and 5v, like the one linked here.

You can find sd card module on AliExpress

esp32 sd card adapter connection
esp32 sd card adapter connection

Here is the wiring diagram with the adapter.

ESP32 SD adapter wiring breadboard
ESP32 SD adapter wiring breadboard


SD Class

SD.begin() SD.begin(uint8_t ssPin=SS, SPIClass &spi=SPI, uint32_t frequency=4000000, const char * mountpoint=”/sd”, uint8_t max_files=5)
Initializes the SD library and card. This begins using the SPI bus and the chip select pin, which defaults to the hardware SS pin. Returns true on success; false on failure.

Return the card type inserted


Tests whether a file or directory exists on the SD card. Returns true if the file or directory exists, false if not.

Create a directory on the SD card. This will also create any intermediate directories that don’t already exist; e.g. SD.mkdir(“a/b/c”) will create a, b, and c. Returns true if the creation of the directory succeeded, false if not., mode)
Opens a file on the SD card. If the file is opened for writing, it will be created if it doesn’t already exist (but the directory must already exist). Parameter mode (optional): the mode to open the file, defaults to FILE_READ – byte. one of FILE_READ: open the file for reading, starting at the beginning of the file. FILE_WRITE: open the file for reading and writing, beginning at the end of the file. Returns a File object referring to the opened file; if the file couldn’t be opened, this object will evaluate to false in a boolean context, i.e. you can test the return value with “if (f)”.

Remove a file from the SD card. Returns true if the removal of the file succeeded, false if not. (if the file didn’t exist, the return value is unspecified)

SD.rename(filenameFrom, filenameTo)
Rename or move a file in the SD card. Returns true if the renaming work else false

Remove a directory from the SD card. The directory must be empty. Returns true if the removal of the directory succeeded, false if not. (if the directory didn’t exist, the return value is unspecified)

Return the total bytes enabled on SD. Returns bytes.

Return the total used bytes enabled on SD. Returns bytes.

Return the size of the SD. Returns bytes

File class
Returns the file name

Check if there are any bytes available for reading from the file. Returns the number of bytes.

Close the file, and ensure that any data written to it is physically saved to the SD card.

Ensures that any bytes written to the file are physically saved to the SD card. This is done automatically when the file is closed.

Read a byte from the file without advancing to the next one. That is, successive calls to peek() will return the same value as the next call to read().

Get the current position within the file (i.e. the location to which the next byte will be read from or written to). Returns the position within the file (unsigned long).

file.print(data) file.print(data, base)
Print data to the file, which must have been opened for writing. Prints numbers as a sequence of digits, each an ASCII character (e.g. the number 123 is sent as the three characters ‘1’, ‘2’, ‘3’). Parameter data: the data to print (char, byte, int, long, or string), BASE (optional): the base in which to print numbers: BIN for binary (base 2), DEC for decimal (base 10), OCT for octal (base 8), HEX for hexadecimal (base 16). Returns the number of bytes written, though reading that number is optional.

file.println() file.println(data) file.println(data, base)
As print but with final return
Seek to a new position in the file, which must be between 0 and the size of the file (inclusive). Parameters: pos: the position to which to seek (unsigned long). Returns true for success, false for failure (boolean)

Get the size of the file. Returns the size of the file in bytes (unsigned long)., len)
Read from the file. Returns the next byte (or character), or -1 if none is available.

file.write(data) file.write(buf, len)
Write data to the file. Returns the number of bytes written, though reading that number is optional

Directories (or folders) are special kinds of files, this function reports if the current file is a directory or not. Returns true if it is a directory.

Reports the next file or folder in a directory. Returns the following file or folder in the path.

It will bring you back to the first file in the directory, used in conjunction with openNextFile().

Returns the data of the last write/change in epoch time.


In the Arduino IDE, some examples are very useful and well commented on.

Here is a sketch that extracts all information about the SD card used.

  SD card test for esp32

  This example shows how use the utility libraries

  The circuit:
    SD card attached to SPI bus as follows:
		SS    = 5;
		MOSI  = 23;
		MISO  = 19;
		SCK   = 18;

   by Mischianti Renzo <>
// include the SD library:
#include <SPI.h>
#include <SD.h>

// WeMos D1 esp8266: D8 as standard
const int chipSelect = SS;

void printDirectory(File dir, int numTabs);

void setup() {
  // Open serial communications and wait for port to open:
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only

  Serial.print("\nInitializing SD card...");

  // we'll use the initialization code from the utility libraries
  // since we're just testing if the card is working!
  if (!SD.begin(chipSelect)) {
    Serial.println("initialization failed. Things to check:");
    Serial.println("* is a card inserted?");
    Serial.println("* is your wiring correct?");
    Serial.println("* did you change the chipSelect pin to match your shield or module?");
    while (1);
  } else {
    Serial.println("Wiring is correct and a card is present.");

  // print the type of card
  Serial.print("Card type:         ");
  switch (SD.cardType()) {
    case CARD_NONE:
    case CARD_MMC:
    case CARD_SD:
    case CARD_SDHC:

  // print the type and size of the first FAT-type volume
//  uint32_t volumesize;
//  Serial.print("Volume type is:    FAT");
//  Serial.println(SDFS.usefatType(), DEC);

  Serial.print("Card size:  ");

  Serial.print("Total bytes: ");

  Serial.print("Used bytes: ");

  File dir ="/");
  printDirectory(dir, 0);


void loop(void) {

void printDirectory(File dir, int numTabs) {
  while (true) {

    File entry =  dir.openNextFile();
    if (! entry) {
      // no more files
    for (uint8_t i = 0; i < numTabs; i++) {
    if (entry.isDirectory()) {
      printDirectory(entry, numTabs + 1);
    } else {
      // files have sizes, directories do not
      Serial.print(entry.size(), DEC);
      time_t lw = entry.getLastWrite();
      struct tm * tmstruct = localtime(&lw);
      Serial.printf("\tLAST WRITE: %d-%02d-%02d %02d:%02d:%02d\n", (tmstruct->tm_year) + 1900, (tmstruct->tm_mon) + 1, tmstruct->tm_mday, tmstruct->tm_hour, tmstruct->tm_min, tmstruct->tm_sec);

Here is an example of a reading written on an SD card.

  SD card read/write

  This example shows how to read and write data to and from an SD card file
  The circuit:
   SD card attached to SPI bus as follows:
		SS    = 5;
		MOSI  = 23;
		MISO  = 19;
		SCK   = 18;

  created   Nov 2010
  by David A. Mellis
  modified 9 Apr 2012
  by Tom Igoe

  This example code is in the public domain.


#include <SPI.h>
#include <SD.h>

File myFile;

void setup() {
  // Open serial communications and wait for port to open:
  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only

  Serial.print("Initializing SD card...");

  if (!SD.begin(SS)) {
    Serial.println("initialization failed!");
    while (1);
  Serial.println("initialization done.");

  // open the file. note that only one file can be open at a time,
  // so you have to close this one before opening another.
  myFile ="test.txt", FILE_WRITE);

  // if the file opened okay, write to it:
  if (myFile) {
    Serial.print("Writing to test.txt...");
    myFile.println("testing 1, 2, 3.");
    // close the file:
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening test.txt");

  // re-open the file for reading:
  myFile ="test.txt");
  if (myFile) {

    // read from the file until there's nothing else in it:
    while (myFile.available()) {
    // close the file:
  } else {
    // if the file didn't open, print an error:
    Serial.println("error opening test.txt");

void loop() {
  // nothing happens after setup


In the following articles, we will see how to use other operating systems with our SD card to overcome the limitations of the standard SD library.

  1. How to use SD card with esp8266 and Arduino
  2. How to use SD card with esp32
  3. How to use SD card with stm32 and SdFat library
