ESP32 WeMos LOLIN32 Lite high resolution pinout and specs

Spread the love

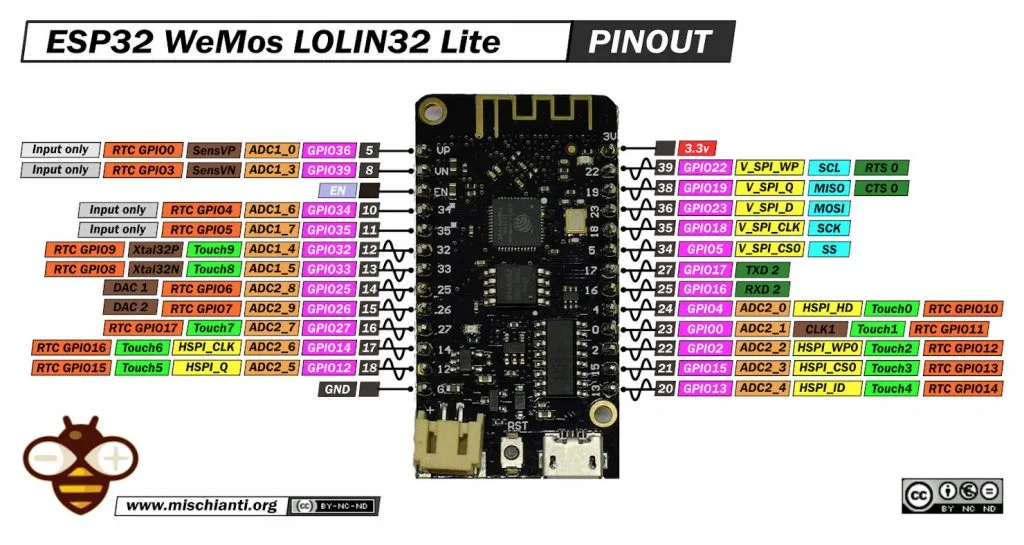

ESP32 WeMos LOLIN32 Lite pinout mischianti low resolution
ESP32 WeMos LOLIN32 Lite pinout mischianti low resolution

Link to the high resolution pinout image

You can find It here ESP32 Dev Kit v1 - TTGO T-Display 1.14 ESP32 - NodeMCU V3 V2 ESP8266 Lolin32 - NodeMCU ESP-32S - WeMos Lolin32 - WeMos Lolin32 mini - ESP32-CAM programmer - ESP32-CAM bundle - ESP32-WROOM-32 - ESP32-S

  • Processors:
    • CPU: Xtensa dual-core (or single-core) 32-bit LX6 microprocessor, operating at 160 or 240 MHz and performing at up to 600 DMIPS
    • Ultra low power (ULP) co-processor
  • Memory: 520 KiB SRAM
  • Wireless connectivity:
    • Wi-Fi: 802.11 b/g/n
    • Bluetooth: v4.2 BR/EDR and BLE (shares the radio with Wi-Fi)
  • Peripheral interfaces:
  • Security:
  • Power management:
    • Internal low-dropout regulator
    • Individual power domain for RTC
    • 5μA deep sleep current
    • Wake up from GPIO interrupt, timer, ADC measurements, capacitive touch sensor interrupt
  • Battery management
    • Connector for 3.7v battery (like 18650).
